IR贴片红外线发射/接收管

IR SMD INFRARED EMITTER/RECEIVER DIODE

应用于智能感应开关、安防与监测、消费电子与物联网，是一种小微型贴片,纳秒级响应速度(发射管上升/下降时间 <10ns，接收管响应延迟 <1us，满足高速检测需求)，亚毫米级检测精度(接收管灵敏度达 0.1uW/cm2，可识别微小光强变化)

IR is applied to smart inductive switches, security and

monitoring, consumer electronics, and IoT, this is a

miniature surface-mount device with nanosecond-level

response speed (emitter rise/fall time <10ns, receiver

response delay <1μs, meeting high-speed detection

requirements) and submillimeter-level detection

accuracy (receiver sensitivity up to 0.1μW/cm², capable

of detecting minute light intensity changes).

元件上锡效果

型号

TYPE

外观

APPERANCE

特性

FEARCHES

S1609IR850

尺寸Size：1.6*0.9*1.08mm

PCB为镀金板，弧形胶体

The PCB is a gold-plated board with an arc-shaped colloid.

辐射区域为扇形，辐射角度大，波段为850nm

The radiation area is a sector with a wide radiation angle and a wavelength of 850 nm.

S1609IR850-03

尺寸：1.6*0.9*1.05mm

PCB为镀金板，球形胶体

The PCB is a gold-plated board with spherical colloids.

辐射区域为锥形，辐射角度小，辐射强度大

The radiation area is conical in shape, with a small radiation angle and high radiation intensity.

S1609IR940

尺寸Size：1.6*0.9*1.08mm

PCB为镀金板，弧形胶体

The PCB is a gold-plated board with an arc-shaped colloid.

辐射区域为扇形，辐射角度大，波段为940nm

The radiation area is a sector with a wide radiation angle and a wavelength of 940 nm.

S1606IR940-G

尺寸Size：1.6*0.6*1.08mm

PCB为镀金板，弧形胶体

The PCB is a gold-plated board with an arc-shaped colloid.

产品厚度薄，辐射区域为扇形，辐射角度大，波段为940nm

The product is thin in thickness, with a fan-shaped radiation area, a wide radiation angle, and a wavelength of 940nm.

S1606IR850-03

尺寸Size：1.6*0.6*1.08mm

PCB为镀金板，球形胶体

The PCB is a gold-plated board with spherical colloids.

产品厚度薄，辐射区域为锥形，辐射角度小，辐射强度大

The product is thin in thickness,the radiation area is conical in shape, with a small radiation angle and high radiation intensity.

S2009 双IR850

尺寸Size：2.*0.9*0.98mm

PCB为镀金板，梯形胶体

The PCB is a gold-plated board with an tranpezoidal colloid.

双发射，独立供电

Dual launch, independent power supply.

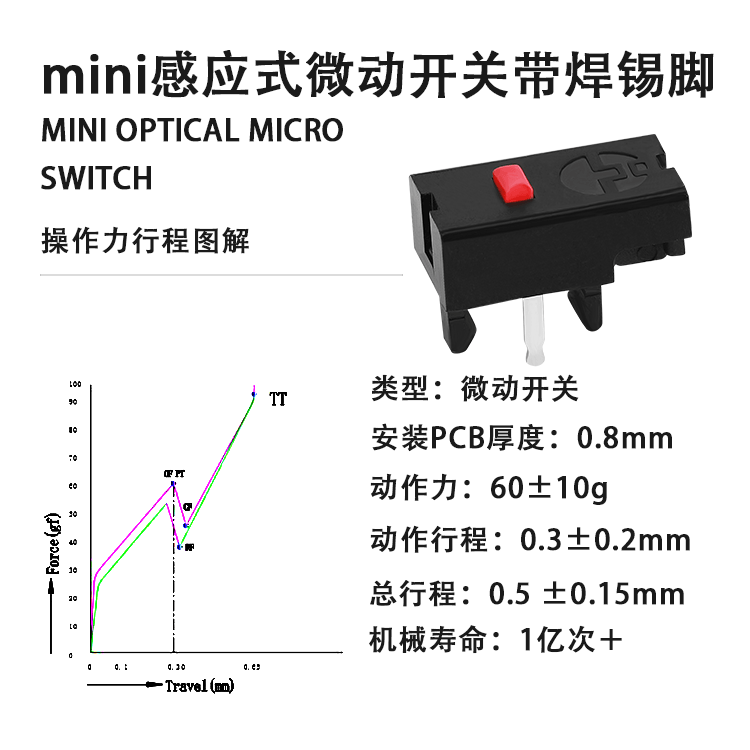

mini感应式微动开关带焊锡脚MINI OPTICAL MICROSWITCH

mini感应式微动开关带焊锡脚
MINI OPTICAL MICROSWITCH
